SKF GH1A-875-AD1

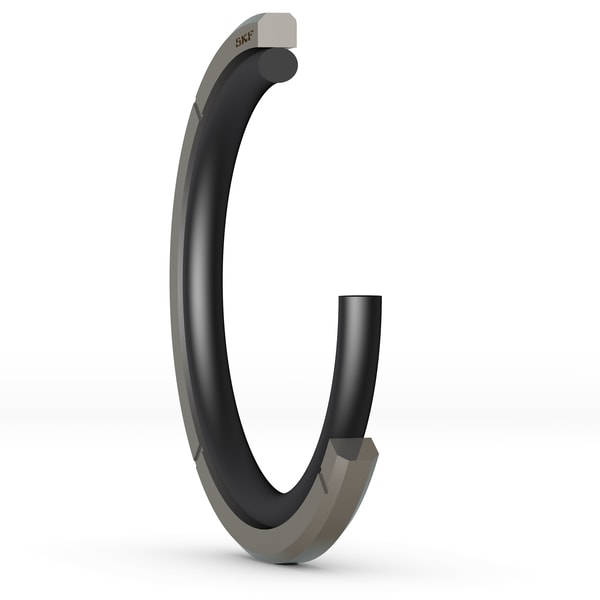

Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
22.23 mm
Cylinder bore diameter
d
14.66 mm
Piston groove diameter
L
3.25 mm
Piston groove width
S
3.78 mm
Radial depth
R
0.38 mm
Groove radius
C
3.18 mm
Lead-in chamfer length
mass
0.0013 kg
Product net weight
