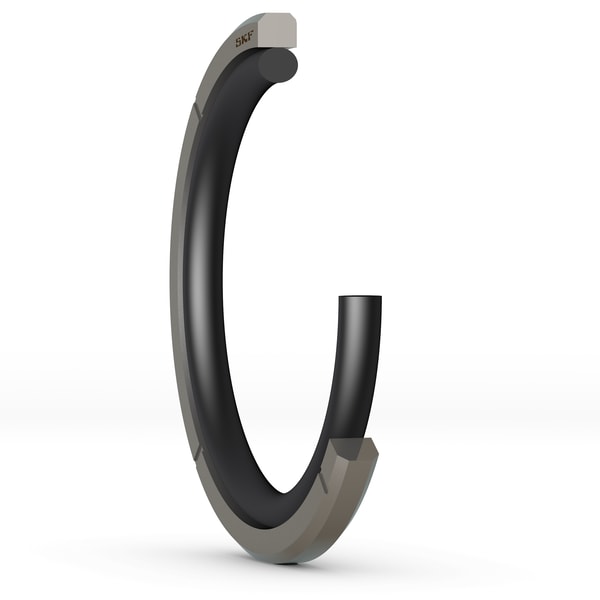

SKF GH1D-4500-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
114.3 mm
Cylinder bore diameter
d
104.34 mm
Piston groove diameter
L
3.28 mm
Piston groove width
S
4.98 mm
Radial depth
R
0.38 mm
Groove radius
C
3.18 mm
Lead-in chamfer length
mass
0.0105 kg
Product net weight
