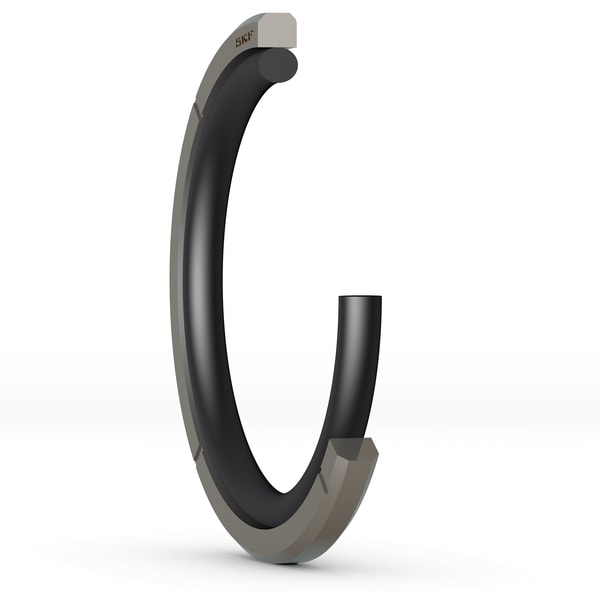

SKF GH2A-1562-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
39.67 mm
Cylinder bore diameter
d
28.91 mm
Piston groove diameter
L
4.27 mm
Piston groove width
S
5.38 mm
Radial depth
R
0.38 mm
Groove radius
C
3.56 mm
Lead-in chamfer length
mass
0.0045 kg
Product net weight
