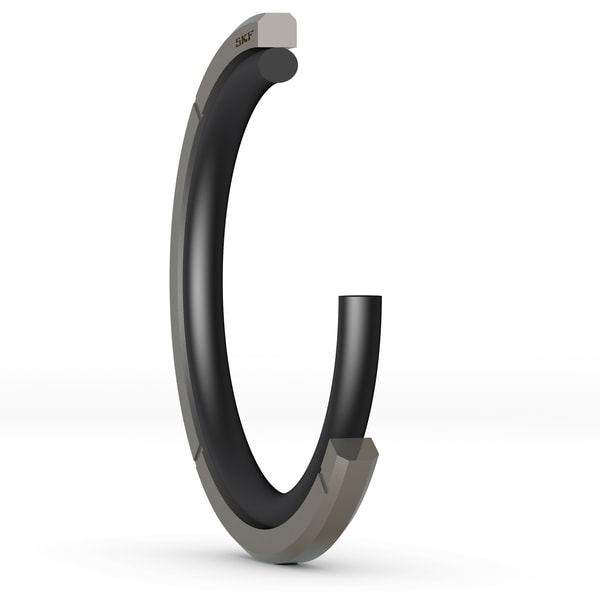

SKF GH3A-3500-AD1
Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
88.9 mm
Cylinder bore diameter
d
73.25 mm
Piston groove diameter
L
6.32 mm
Piston groove width
S
7.82 mm
Radial depth
R
0.64 mm
Groove radius
C
5.08 mm
Lead-in chamfer length
mass
0.0224 kg
Product net weight
