SKF GH4A-10500-AD1

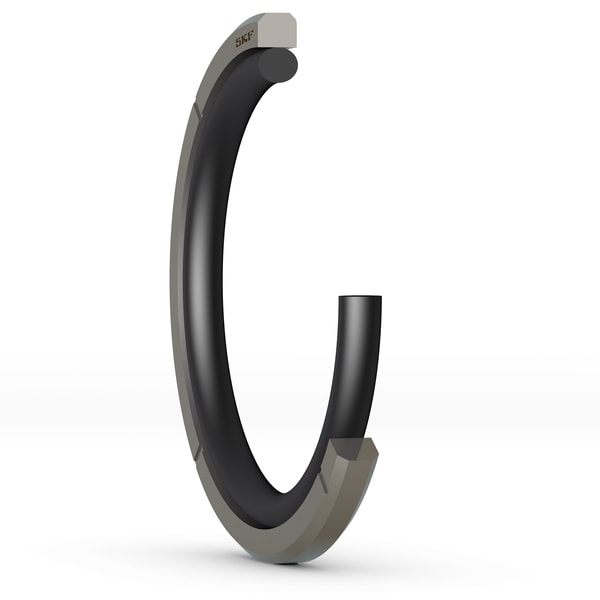

Piston seal with PTFE slide ring and O-ring energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
266.7 mm
Cylinder bore diameter
d
245.62 mm
Piston groove diameter
L
8.18 mm
Piston groove width
S
10.54 mm
Radial depth
R
0.89 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.125 kg
Product net weight
