SKF LCP-200X181.5X19-ND1

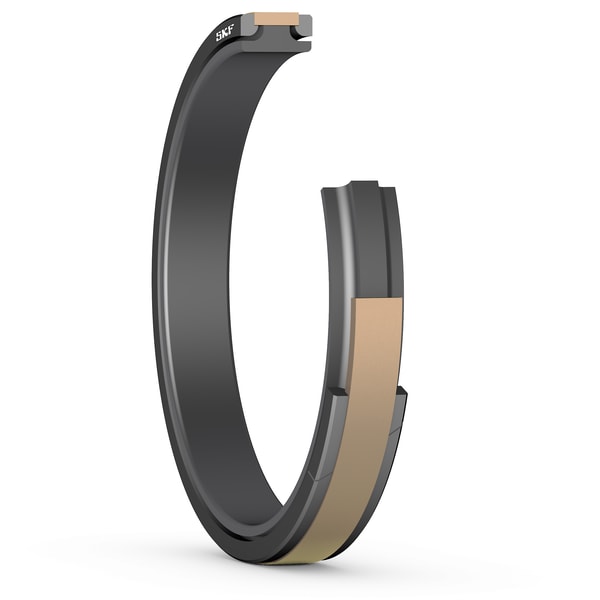

Four-piece capped piston T-seal with patented SKF locking anti-extrusion rings and PTFE cap
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
200.0 mm
Cylinder bore diameter
d
181.5 mm
Piston groove diameter
L
19.0 mm
Piston groove width
S
9.25 mm
Radial depth
R
0.5 mm
Groove radius
C
6.5 mm
Lead-in chamfer length
mass
0.504 kg
Product net weight
