SKF LCP-290X270X16-ND1

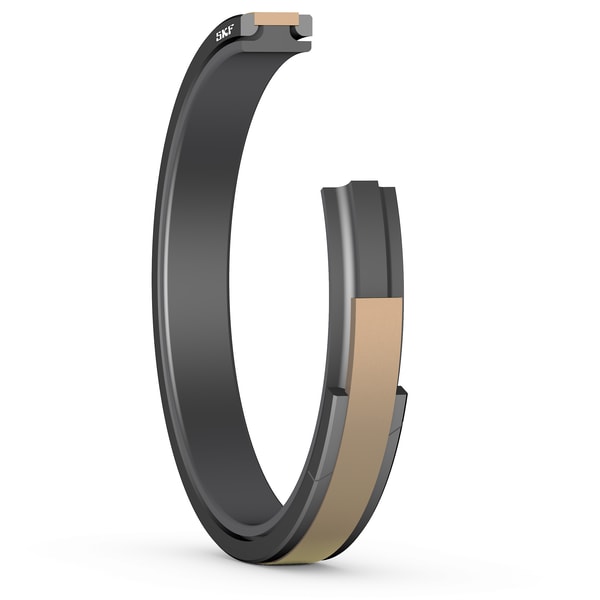

Four-piece capped piston T-seal with patented SKF locking anti-extrusion rings and PTFE cap
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
290.0 mm
Cylinder bore diameter
d
270.0 mm
Piston groove diameter
L
16.0 mm
Piston groove width
S
10.0 mm
Radial depth
R
0.5 mm
Groove radius
C
6.5 mm
Lead-in chamfer length
mass
0.378 kg
Product net weight
