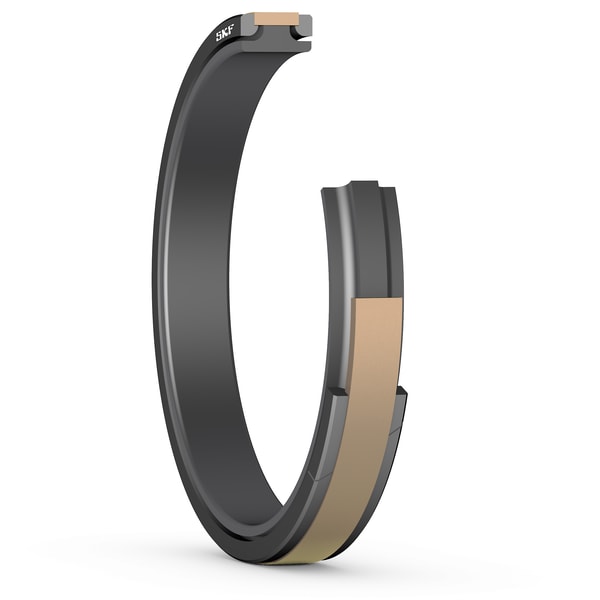

SKF LCP-40X30X8-ND1
Four-piece capped piston T-seal with patented SKF locking anti-extrusion rings and PTFE cap
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
40.0 mm
Cylinder bore diameter
d
30.0 mm
Piston groove diameter
L
8.0 mm
Piston groove width
S
5.0 mm
Radial depth
R
0.5 mm
Groove radius
C
4.0 mm
Lead-in chamfer length
mass
0.007 kg
Product net weight
