SKF LCP-90X75X12.5-ND1

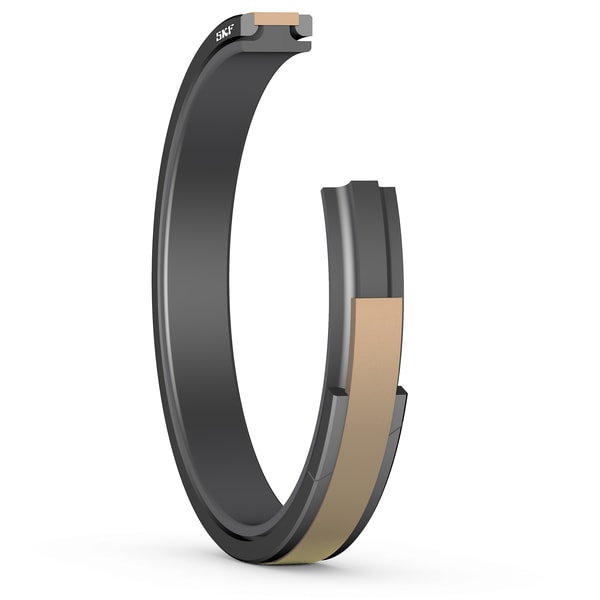

Four-piece capped piston T-seal with patented SKF locking anti-extrusion rings and PTFE cap
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
90.0 mm
Cylinder bore diameter
d
75.0 mm
Piston groove diameter
L
12.5 mm
Piston groove width
S
7.5 mm
Radial depth
R
0.5 mm
Groove radius
C
5.0 mm
Lead-in chamfer length
mass
0.0802 kg
Product net weight
