SKF LCP6-5000-ND1

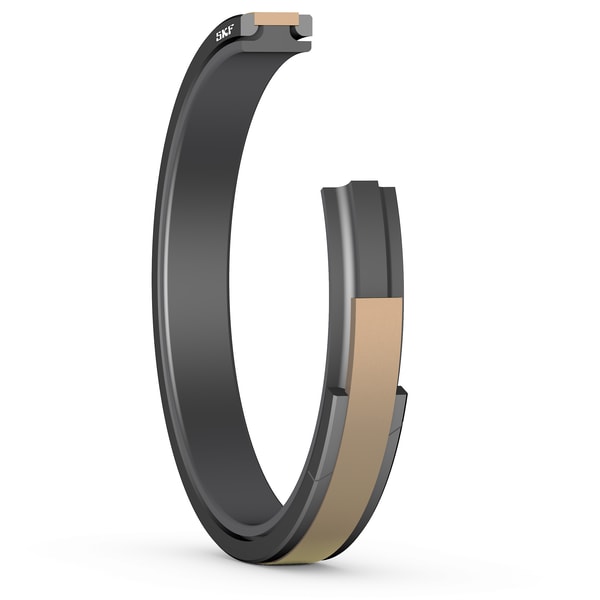

Four-piece capped piston T-seal with patented SKF locking anti-extrusion rings and PTFE cap
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
127.0 mm
Cylinder bore diameter
d
108.46 mm
Piston groove diameter
L
19.05 mm
Piston groove width
S
9.27 mm
Radial depth
R
0.51 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.172 kg
Product net weight
