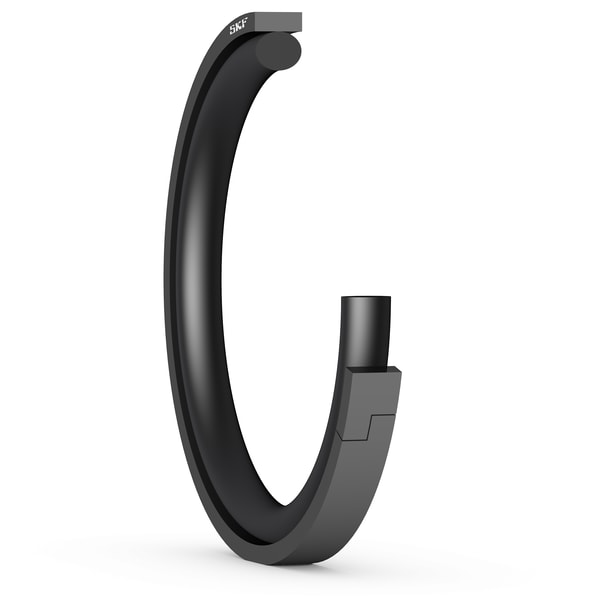

SKF SCP2-4500-E5D
Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
114.3 mm
Cylinder bore diameter
d
100.13 mm
Piston groove diameter
L
7.16 mm
Piston groove width
S
7.09 mm
Radial depth
R
5.08 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0359 kg
Product net weight
