SKF SCP3-6500-E5D

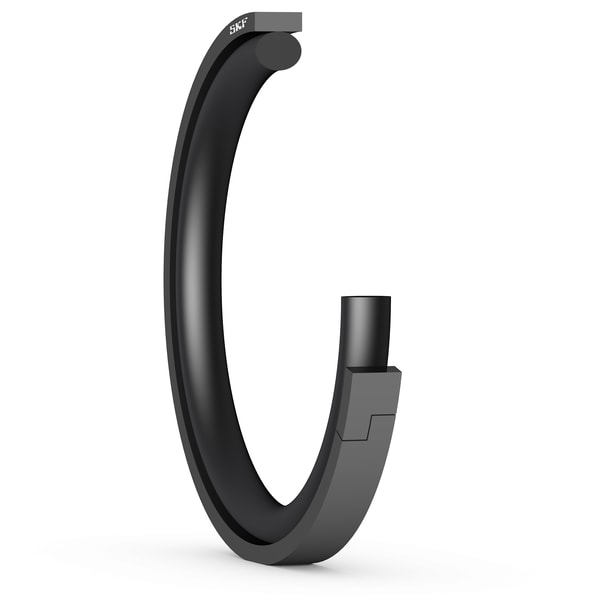

Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
165.1 mm
Cylinder bore diameter
d
145.8 mm
Piston groove diameter
L
9.58 mm
Piston groove width
S
9.65 mm
Radial depth
R
5.08 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0648 kg
Product net weight
