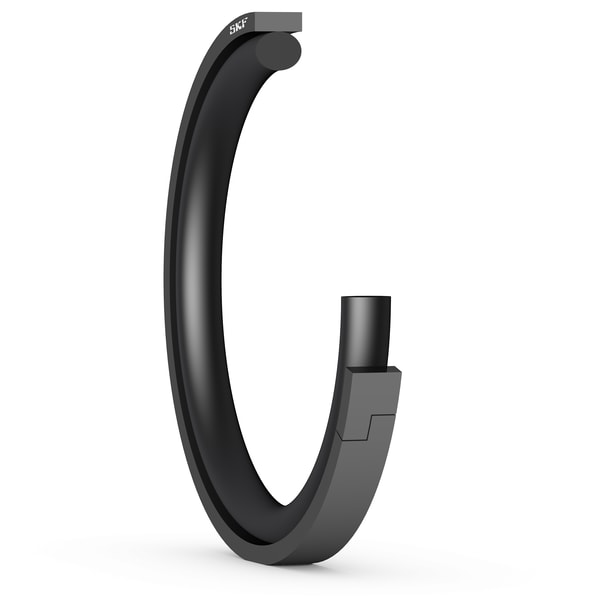

SKF SCP5-3000-E5D
Step cut piston seal with rigid cap and rubber energizer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
76.2 mm
Cylinder bore diameter
d
61.16 mm
Piston groove diameter
L
7.92 mm
Piston groove width
S
7.52 mm
Radial depth
R
5.08 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0405 kg
Product net weight
