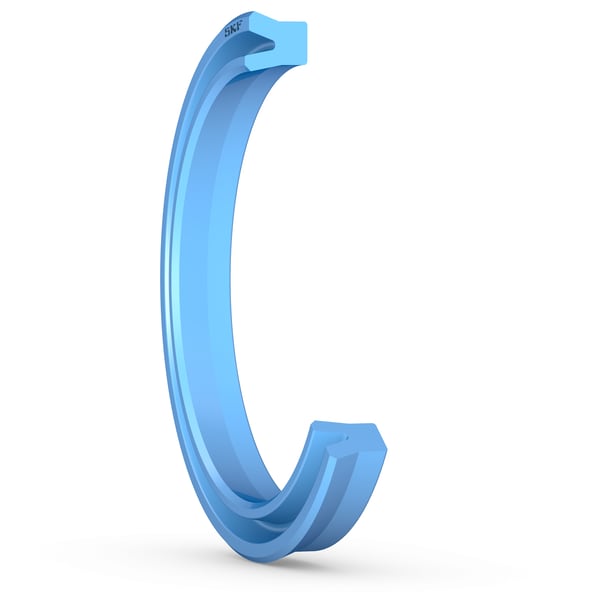

SKF UNP-140X125X10-E6W
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
140.0 mm
Cylinder bore diameter
d
125.0 mm
Piston groove diameter
L
10.0 mm
Piston groove width
L+H
12.0 mm
Additional groove width
H
9.0 mm
Nominal seal width
S
7.5 mm
Radial depth
R
0.5 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.0319 kg
Product net weight
