SKF UNP-150X130X17-E6W

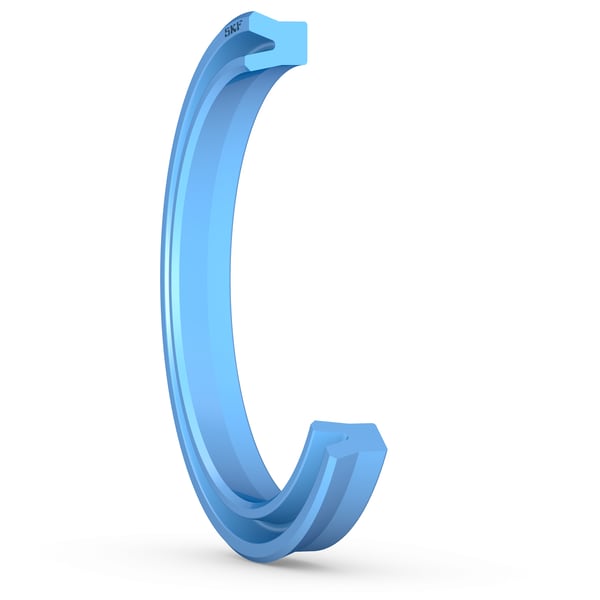

Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
150.0 mm
Cylinder bore diameter
d
130.0 mm
Piston groove diameter
L
17.0 mm
Piston groove width
L+H
19.0 mm
Additional groove width
H
15.5 mm
Nominal seal width
S
10.0 mm
Radial depth
R
0.75 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.062 kg
Product net weight
