SKF UNP-160X140X15.5-E6W

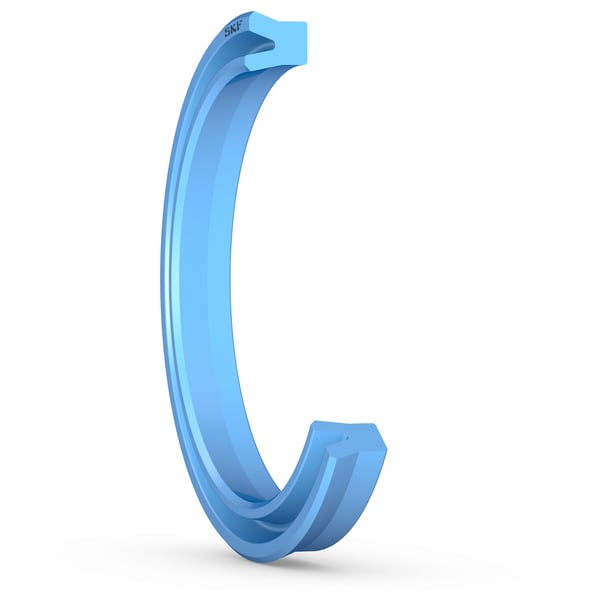

Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
160.0 mm
Cylinder bore diameter
d
140.0 mm
Piston groove diameter
L
15.5 mm
Piston groove width
L+H
17.5 mm
Additional groove width
H
14.5 mm
Nominal seal width
S
10.0 mm
Radial depth
R
0.75 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.0766 kg
Product net weight
