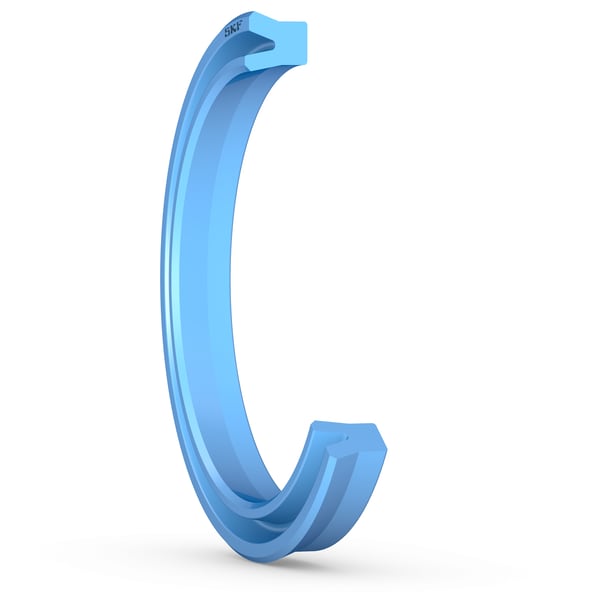

SKF UNP-200X175X19.7-E6W
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
200.0 mm
Cylinder bore diameter
d
175.0 mm
Piston groove diameter
L
19.7 mm
Piston groove width
L+H
21.7 mm
Additional groove width
H
18.2 mm
Nominal seal width
S
12.5 mm
Radial depth
R
0.75 mm
Groove radius
C
12.0 mm
Lead-in chamfer length
mass
0.153 kg
Product net weight
