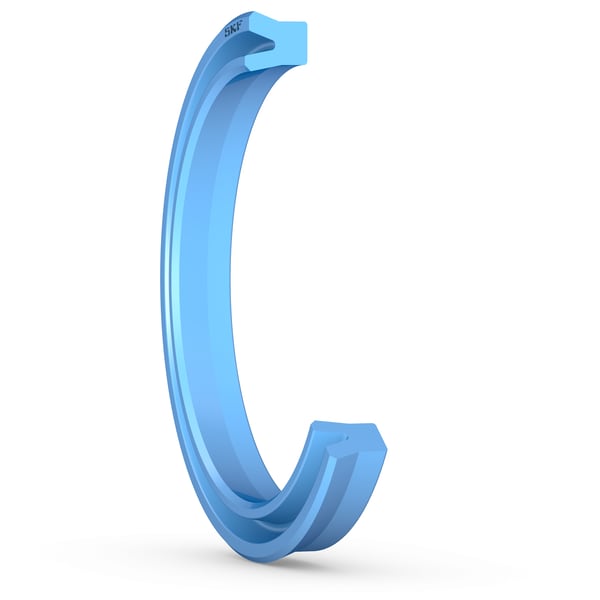

SKF UNP-300X275X17.5-E6W
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
300.0 mm
Cylinder bore diameter
d
275.0 mm
Piston groove diameter
L
17.5 mm
Piston groove width
L+H
19.5 mm
Additional groove width
H
16.0 mm
Nominal seal width
S
12.5 mm
Radial depth
R
0.75 mm
Groove radius
C
12.0 mm
Lead-in chamfer length
mass
0.194 kg
Product net weight
