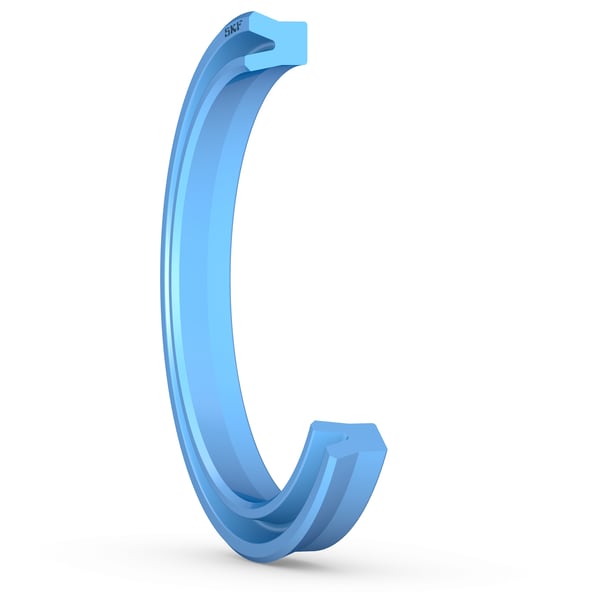

SKF UNP-63X53X8.3-E6W
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
63.0 mm
Cylinder bore diameter
d
53.0 mm
Piston groove diameter
L
8.3 mm
Piston groove width
L+H
10.3 mm
Additional groove width
H
7.3 mm
Nominal seal width
S
5.0 mm
Radial depth
R
0.4 mm
Groove radius
C
5.0 mm
Lead-in chamfer length
mass
0.007 kg
Product net weight
