SKF UNP-80X60X11-E6W

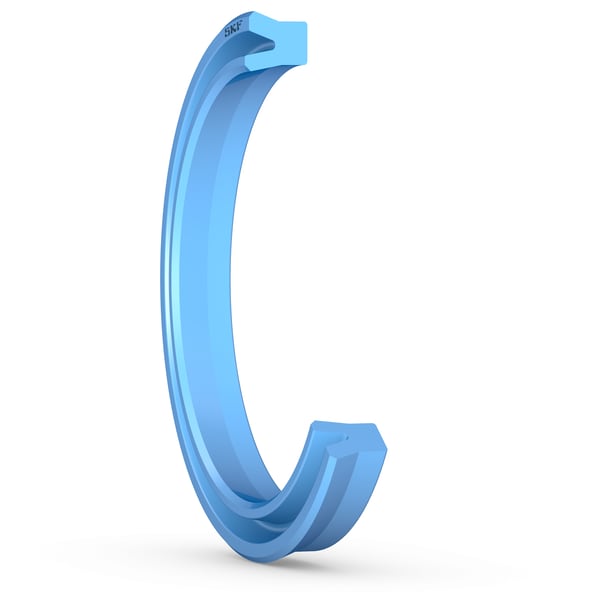

Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
80.0 mm
Cylinder bore diameter
d
60.0 mm
Piston groove diameter
L
11.0 mm
Piston groove width
L+H
13.0 mm
Additional groove width
H
10.0 mm
Nominal seal width
S
10.0 mm
Radial depth
R
0.75 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.026 kg
Product net weight
