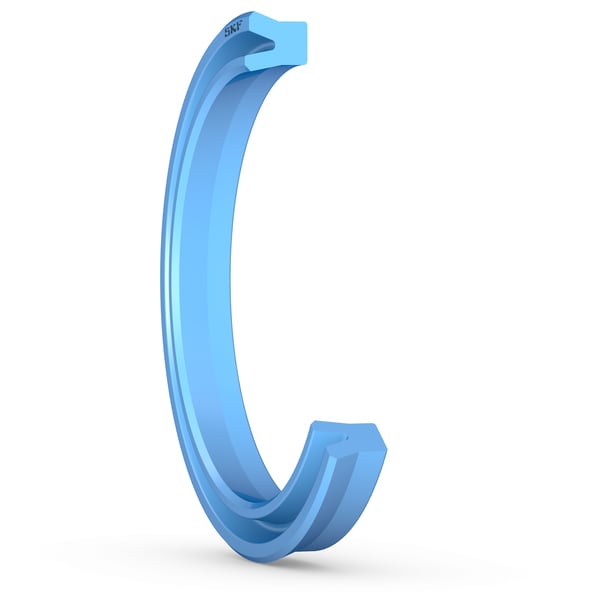

SKF UNP187-2875-250-H9J
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
82.55 mm
Cylinder bore diameter
d
73.03 mm
Piston groove diameter
L
6.99 mm
Piston groove width
L+H
9.37 mm
Additional groove width
H
6.35 mm
Nominal seal width
S
4.75 mm
Radial depth
R
0.38 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0075 kg
Product net weight
