SKF UNP187-2875-375-H9J

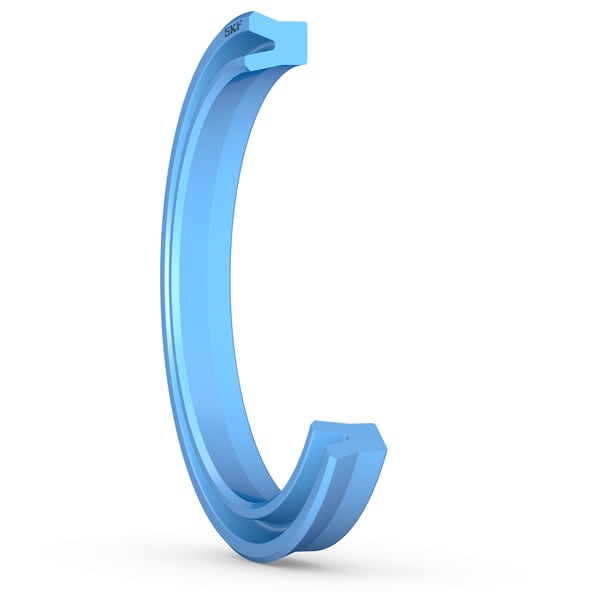

Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
82.55 mm
Cylinder bore diameter
d
73.03 mm
Piston groove diameter
L
10.48 mm
Piston groove width
L+H
12.87 mm
Additional groove width
H
9.53 mm
Nominal seal width
S
4.75 mm
Radial depth
R
0.38 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0122 kg
Product net weight
