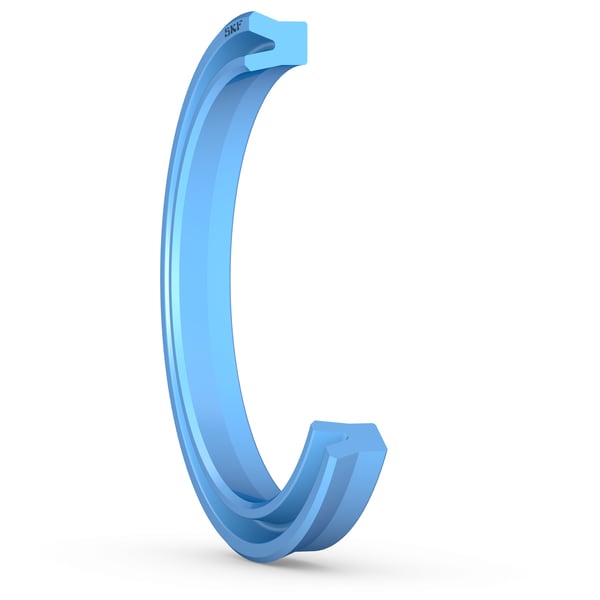

SKF UNP250-2500-312-H9J
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
76.2 mm
Cylinder bore diameter
d
63.5 mm
Piston groove diameter
L
8.72 mm
Piston groove width
L+H
11.89 mm
Additional groove width
H
7.92 mm
Nominal seal width
S
6.35 mm
Radial depth
R
0.51 mm
Groove radius
C
7.92 mm
Lead-in chamfer length
mass
0.0112 kg
Product net weight
