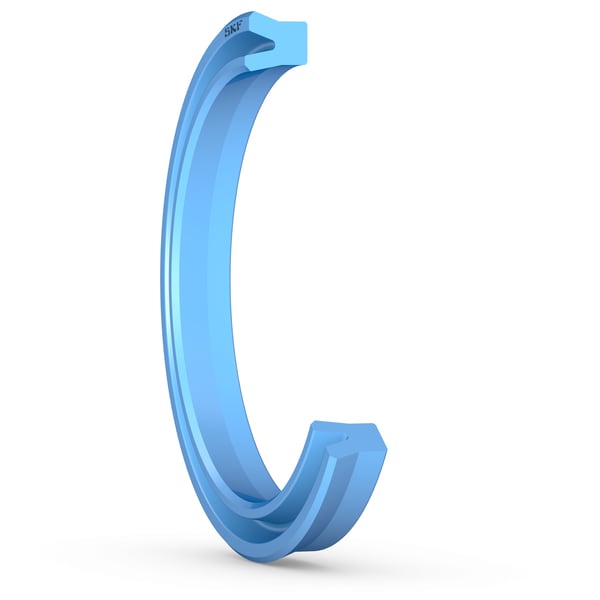

SKF UNP375-4250-500-H9J
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
127.0 mm
Cylinder bore diameter
d
107.95 mm
Piston groove diameter
L
13.97 mm
Piston groove width
L+H
18.72 mm
Additional groove width
H
12.7 mm
Nominal seal width
S
9.53 mm
Radial depth
R
0.81 mm
Groove radius
C
9.53 mm
Lead-in chamfer length
mass
0.047 kg
Product net weight
