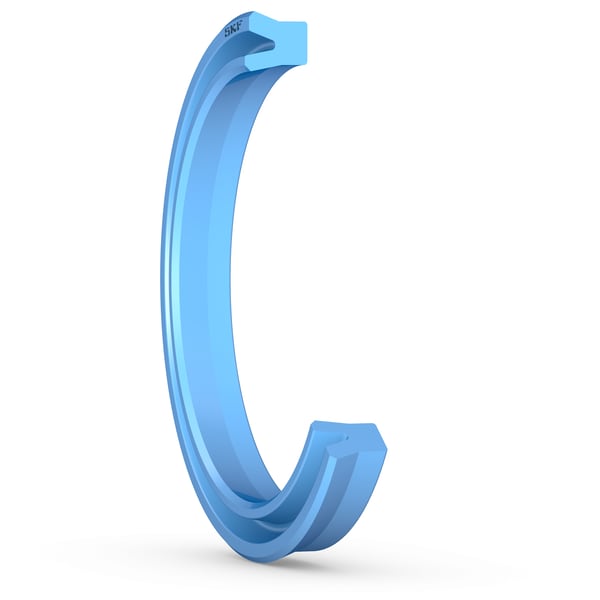

SKF UNP500-3000-500-H9J
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
Dimensions
D
101.6 mm
Cylinder bore diameter
d
76.2 mm
Piston groove diameter
L
13.97 mm
Piston groove width
L+H
20.32 mm
Additional groove width
H
12.7 mm
Nominal seal width
S
12.7 mm
Radial depth
R
1.02 mm
Groove radius
C
9.53 mm
Lead-in chamfer length
mass
0.0438 kg
Product net weight
