Timken 100TP143
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
254 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

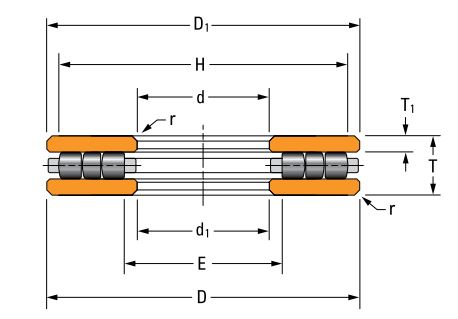

Dimensions
D - Bearing O.D.
406.400 mm
T - Bearing Width
76.2 mm
T1 - Bearing Width
20.64 mm
d1 - Large Bore I.D.
256.38 mm
D1 - Small Diameter O.D.
404.02 mm
E - Shoulder Diameter - Housing
273 mm
H - Shoulder Diameter - Shaft
387.4 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
2100000 N
Dynamic Load Rating
1700000 N
Limiting Speed
1420 rpm
