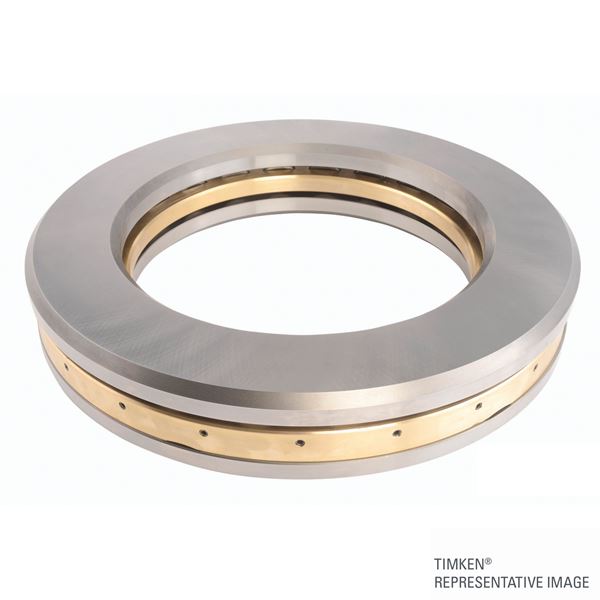

Timken 100TP144
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

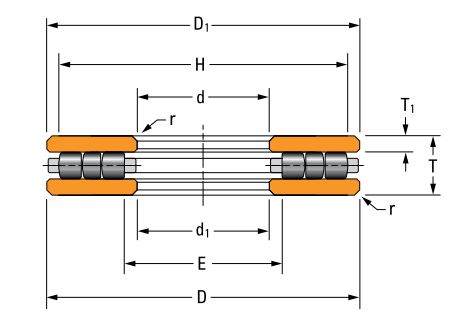

d - Bore Diameter
254 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
457.2 mm
T - Bearing Width
95.25 mm
T1 - Bearing Width
26.19 mm
d1 - Large Bore I.D.
256.38 mm
D1 - Small Diameter O.D.
454.82 mm
E - Shoulder Diameter - Housing
276.2 mm
H - Shoulder Diameter - Shaft
435 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
2900000 N
Dynamic Load Rating
2500000 N
Limiting Speed
1260 rpm
