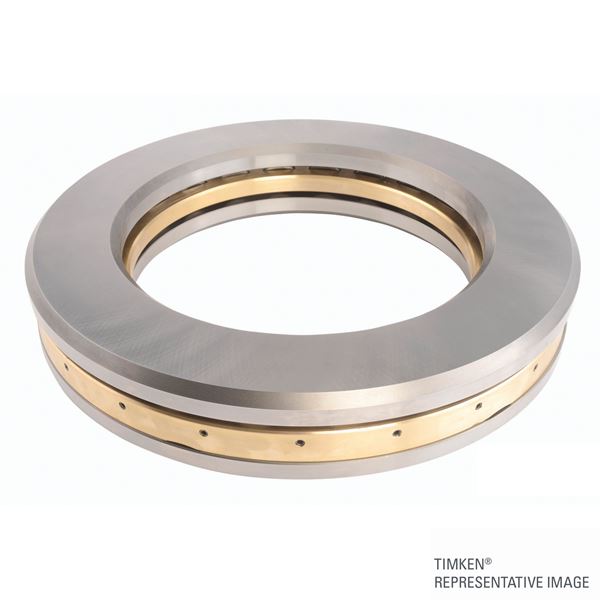

Timken 100TP145
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
254 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

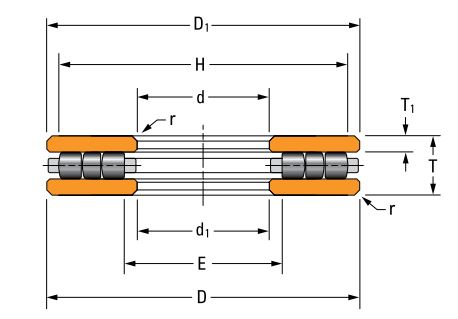

Dimensions
D - Bearing O.D.
508.000 mm
T - Bearing Width
95.25 mm
T1 - Bearing Width
26.19 mm
d1 - Large Bore I.D.
256.38 mm
D1 - Small Diameter O.D.
505.62 mm
E - Shoulder Diameter - Housing
281 mm
H - Shoulder Diameter - Shaft
481 mm
r - Fillet Chamfer
3.2 mm
Basic Load Ratings
Static Load Rating
3700000 N
Dynamic Load Rating
3000000 N
Limiting Speed
1140 rpm
