Timken 1013KLLG
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KLLG
Seal Type
Labyrinth Seal
Collar No.
S1013K
Basic Outer Ring Size
205

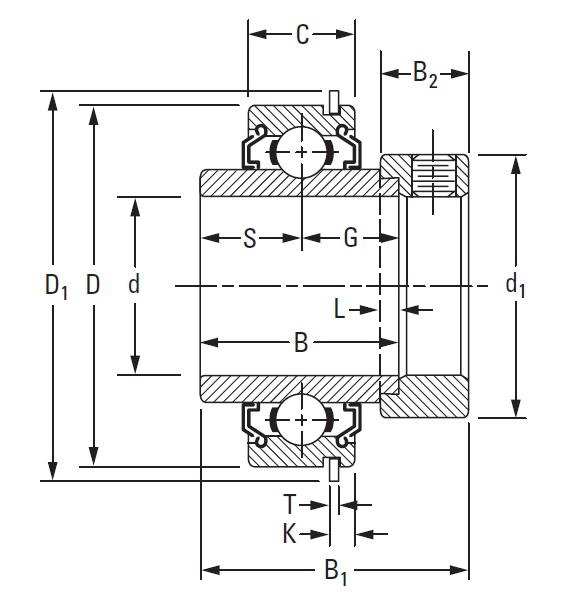

Dimensions
Outside Diameter D
52 mm
Inner Ring Width B
34.92 mm
Outside Ring Width C
15 mm
Radius r
0.6 mm
Center of Bearing from End S
17.5 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
38.1 mm
Dimension B1
44.1 mm
Dimension B2
13.5 mm
Dimension D1
57.55 mm
Dimension T
1.07 mm
Dimension K
3.45 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
7700 N
Dynamic Load Rating
15800 N
