Timken 1104KLLG
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KLLG
Seal Type
Labyrinth Seal
Collar No.
S1104K
Basic Outer Ring Size
207

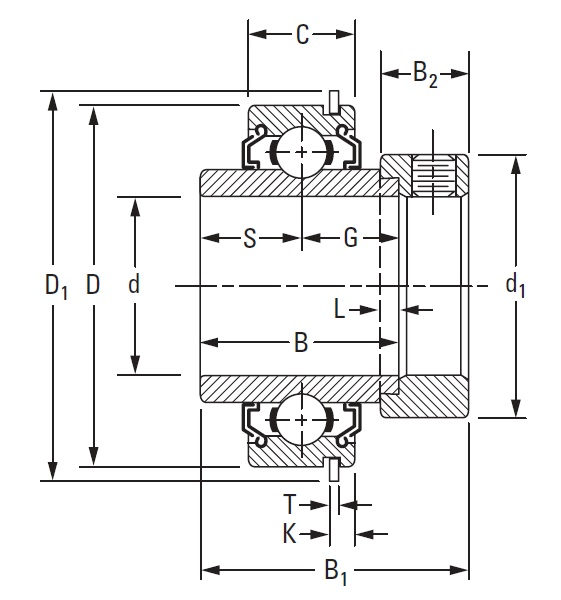

Dimensions
Outside Diameter D
72 mm
Inner Ring Width B
37.7 mm
Outside Ring Width C
17 mm
Radius r
0.6 mm
Center of Bearing from End S
18.85 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
54 mm
Dimension B1
51.2 mm
Dimension B2
17.1 mm
Dimension D1
78.18 mm
Dimension T
1.65 mm
Dimension K
4.83 mm
Dimension L
4 mm
Basic Load Ratings
Static Load Rating
15100 N
Dynamic Load Rating
28500 N
