Timken 1111KLLG
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KLLG
Seal Type
Labyrinth Seal
Collar No.
S1111K
Basic Outer Ring Size
209

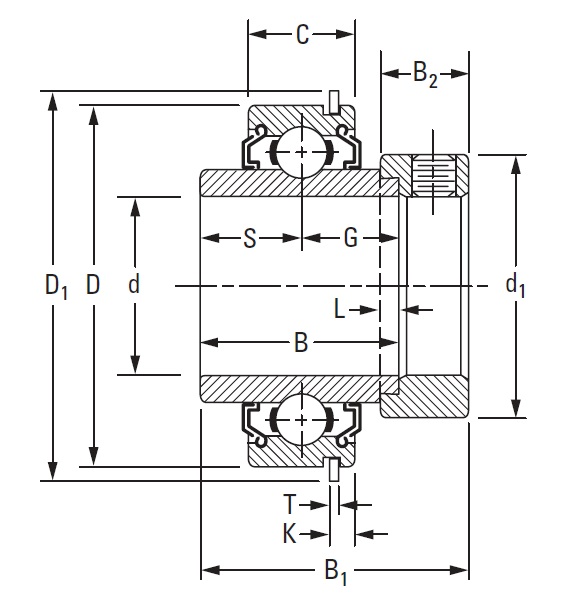

Dimensions
Outside Diameter D
85 mm
Inner Ring Width B
42.86 mm
Outside Ring Width C
19 mm
Radius r
0.6 mm
Center of Bearing from End S
21.4 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
63.5 mm
Dimension B1
56.4 mm
Dimension B2
18.3 mm
Dimension D1
91.28 mm
Dimension T
1.65 mm
Dimension K
4.83 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
20000 N
Dynamic Load Rating
36300 N
