Timken 1113KLLG
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KLLG
Seal Type
Labyrinth Seal
Collar No.
S1113K
Basic Outer Ring Size
210

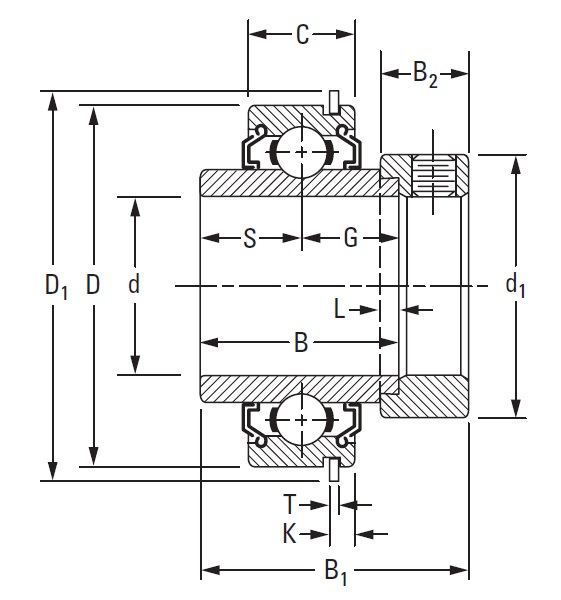

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
20 mm
Radius r
0.6 mm
Center of Bearing from End S
24.6 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension B1
62.7 mm
Dimension B2
18.3 mm
Dimension D1
96.44 mm
Dimension T
2.41 mm
Dimension K
5.59 mm
Dimension L
4.8 mm
Basic Load Ratings
Static Load Rating
22700 N
Dynamic Load Rating
39000 N
