Timken 1115KPPB3
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
1..KPPB2,3,4
Seal Type
Shroud Seal

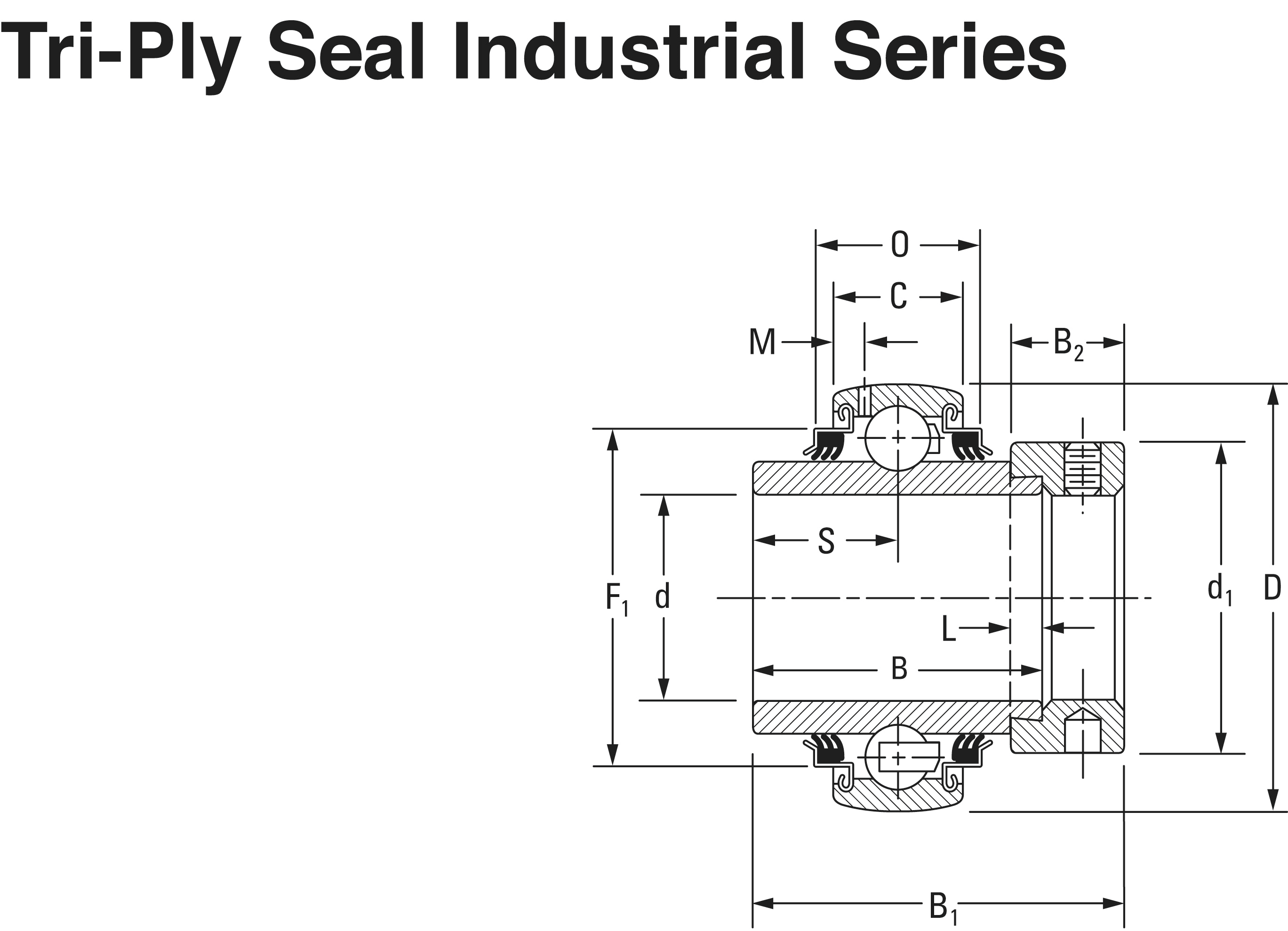

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
23 mm
Radius r
0.6 mm
Center of Bearing from End S
24.6 mm
Set Screw Size
3/8-16
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension B1
62.7 mm
Dimension B2
18.3 mm
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
