Timken 1200KL
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KL
Seal Type
Labyrinth Seal

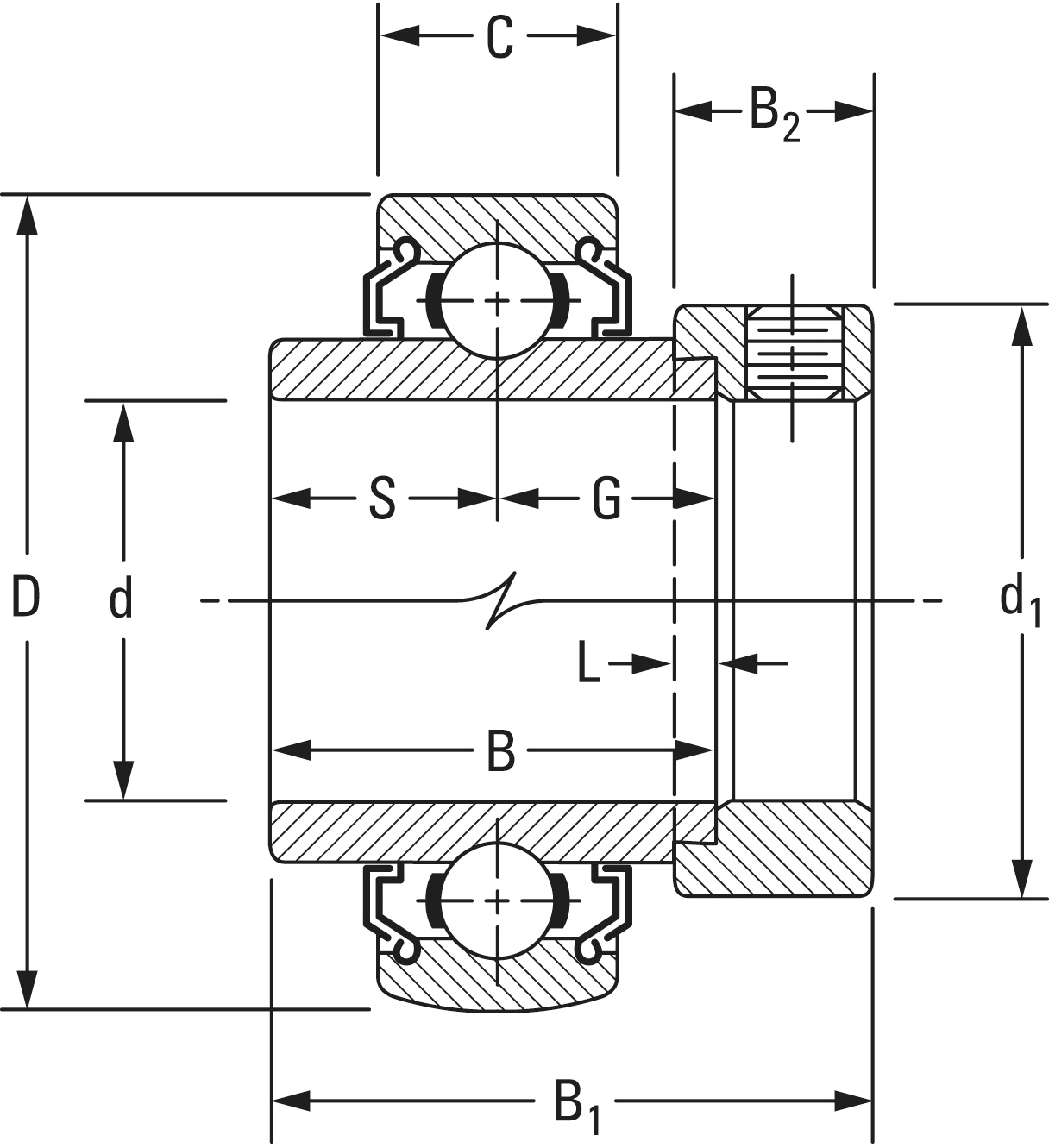

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
55.56 mm
Outside Ring Width C
24 mm
Radius r
0.6 mm
Center of Bearing from End S
27.8 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
76.2 mm
Dimension B1
71.4 mm
Dimension B2
20.6 mm
Basic Load Ratings
Static Load Rating
2900 N
Dynamic Load Rating
48100 N
