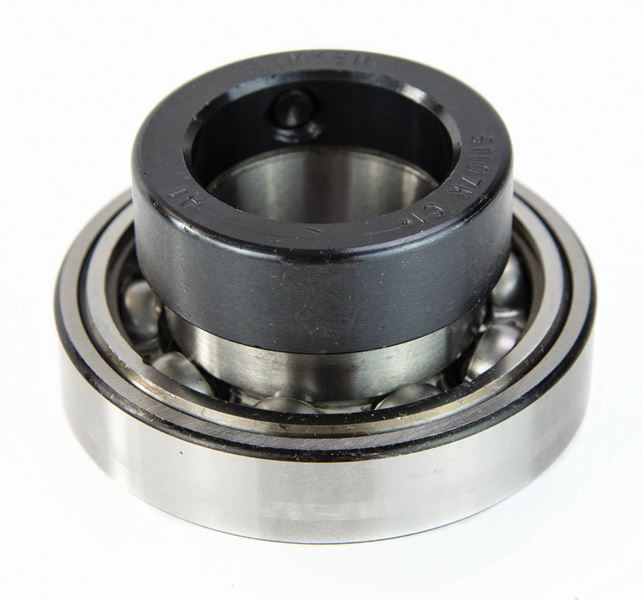

Timken 1207KRR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Manufacturing Part Number
1207KRR + COL
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
1..KRR
Seal Type
Shroud Seal

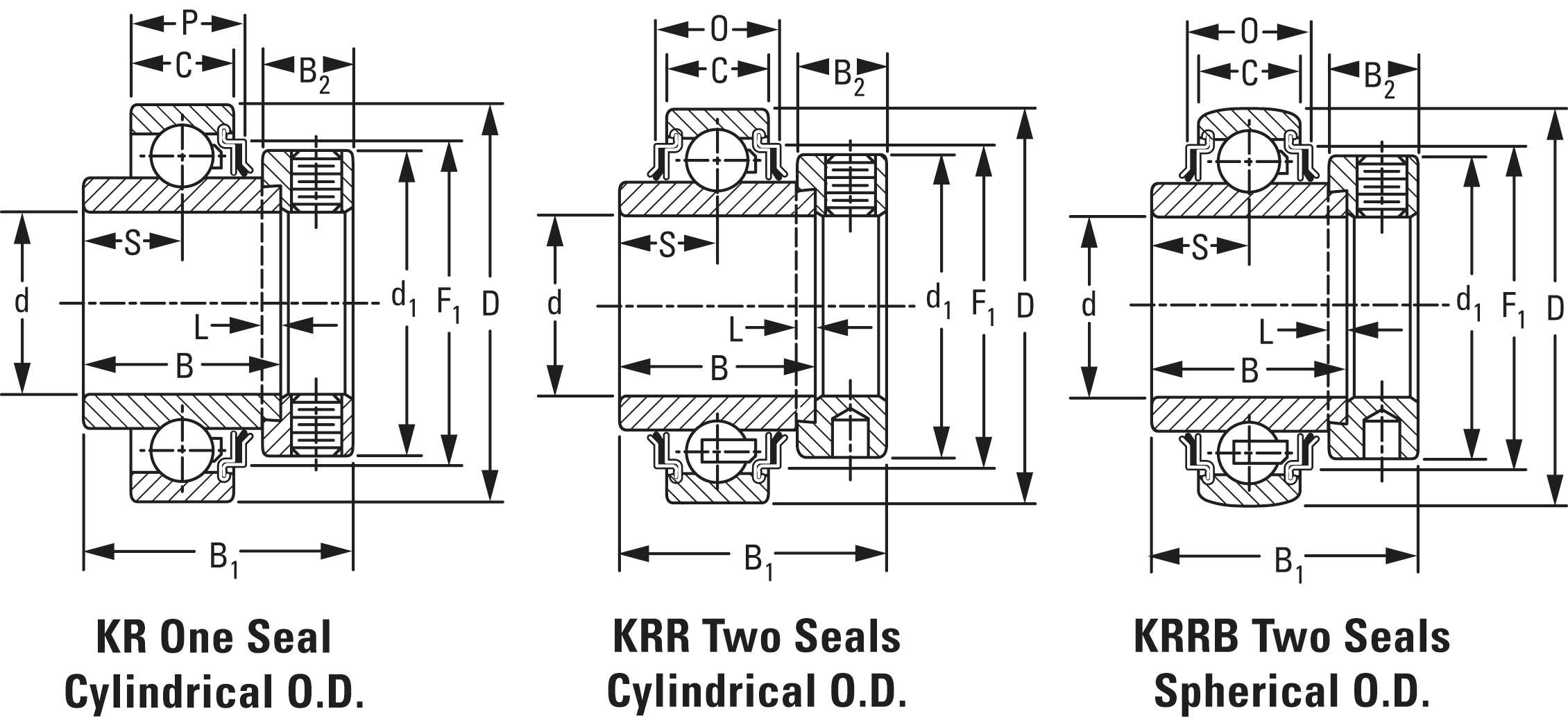

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
61.91 mm
Outside Ring Width C
27 mm
Radius r
0.6 mm
Center of Bearing from End S
31 mm
Set Screw Size
7/16-14
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
84.1 mm
Dimension B1
77.8 mm
Dimension B2
22.2 mm
Basic Load Ratings
Static Load Rating
35900 N
Dynamic Load Rating
58200 N
