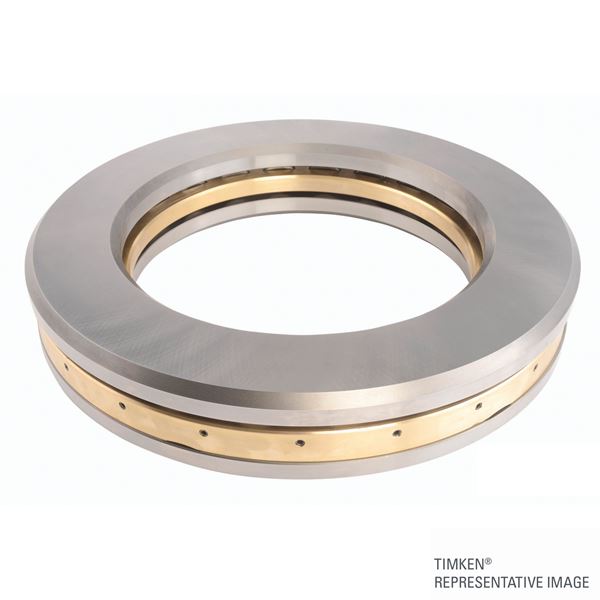

Timken 140TP158
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
355.6 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
508.000 mm
T - Bearing Width
95.25 mm
T1 - Bearing Width
26.19 mm
d1 - Large Bore I.D.
358.78 mm
D1 - Small Diameter O.D.
504.82 mm
E - Shoulder Diameter - Housing
374.6 mm
H - Shoulder Diameter - Shaft
489 mm
r - Fillet Chamfer
3.2 mm
Basic Load Ratings
Static Load Rating
5600000 N
Dynamic Load Rating
2400000 N
Limiting Speed
950 rpm
