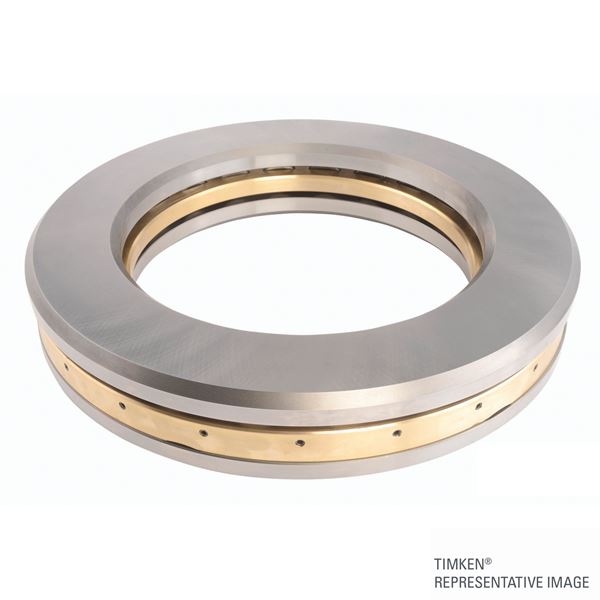

Timken 160TP165
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
406.400 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
609.600 mm
T - Bearing Width
114.3 mm
T1 - Bearing Width
31.75 mm
d1 - Large Bore I.D.
409.6 mm
D1 - Small Diameter O.D.
606.4 mm
E - Shoulder Diameter - Housing
430.2 mm
H - Shoulder Diameter - Shaft
585.8 mm
r - Fillet Chamfer
3.2 mm
Basic Load Ratings
Static Load Rating
5200000 N
Dynamic Load Rating
3400000 N
Limiting Speed
950 rpm
