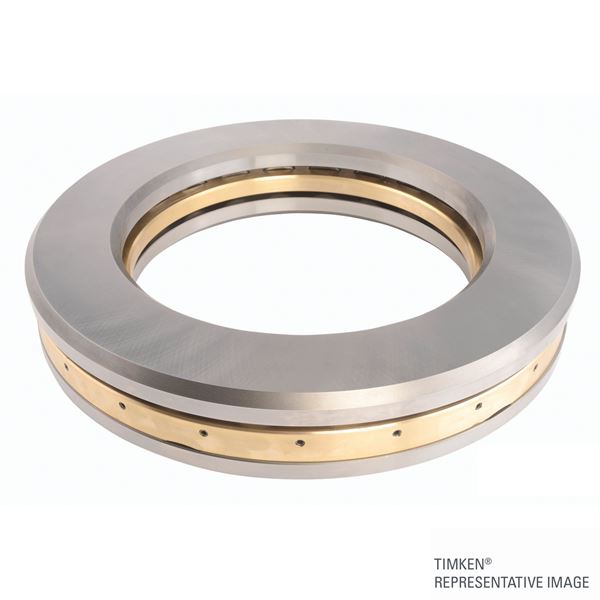

Timken 20TP104
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
50.8 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

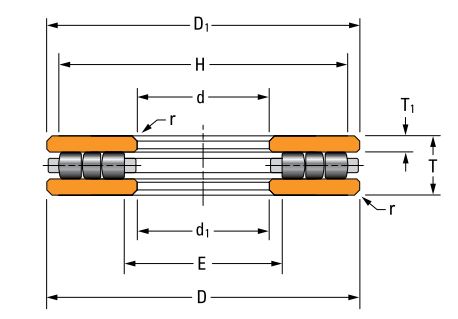

Dimensions
D - Bearing O.D.
177.800 mm
T - Bearing Width
34.925 mm
T1 - Bearing Width
9.52 mm
d1 - Large Bore I.D.
52.39 mm
D1 - Small Diameter O.D.
176.21 mm
E - Shoulder Diameter - Housing
65.1 mm
H - Shoulder Diameter - Shaft
163.5 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
1700000 N
Dynamic Load Rating
400000 N
Limiting Speed
1630 rpm
