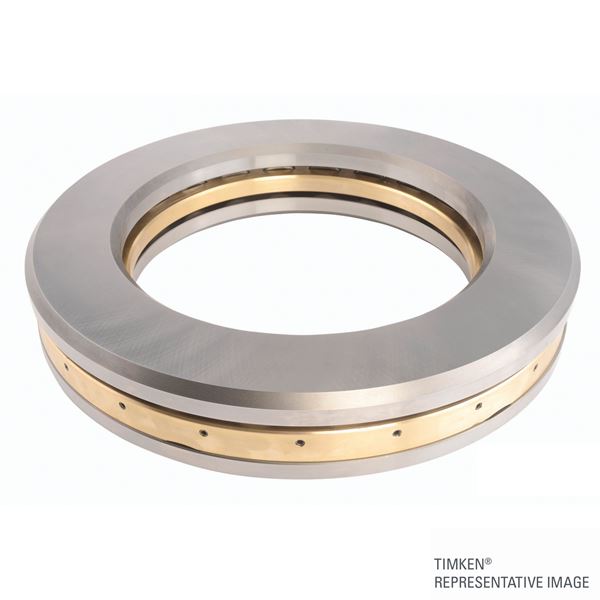

Timken 30TP106
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
76.2 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

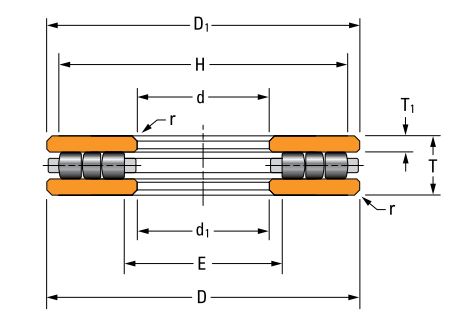

Dimensions
D - Bearing O.D.
152.400 mm
T - Bearing Width
34.925 mm
T1 - Bearing Width
9.52 mm
d1 - Large Bore I.D.
77.79 mm
D1 - Small Diameter O.D.
150.81 mm
E - Shoulder Diameter - Housing
85.7 mm
H - Shoulder Diameter - Shaft
142.9 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
1200000 N
Dynamic Load Rating
300000 N
Limiting Speed
1900 rpm
