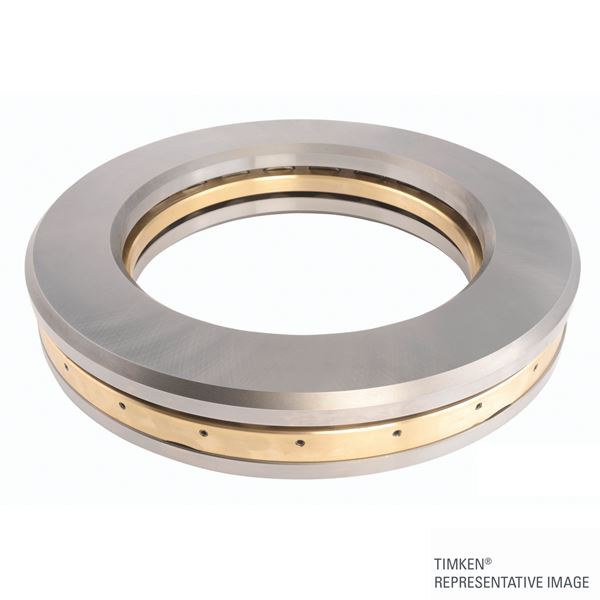

Timken 50TP121
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
127 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
254.000 mm
T - Bearing Width
50.8 mm
T1 - Bearing Width
14.29 mm
d1 - Large Bore I.D.
128.59 mm
D1 - Small Diameter O.D.
252.41 mm
E - Shoulder Diameter - Housing
141.3 mm
H - Shoulder Diameter - Shaft
239.7 mm
r - Fillet Chamfer
3.2 mm
Basic Load Ratings
Static Load Rating
3700000 N
Dynamic Load Rating
800000 N
Limiting Speed
1140 rpm
