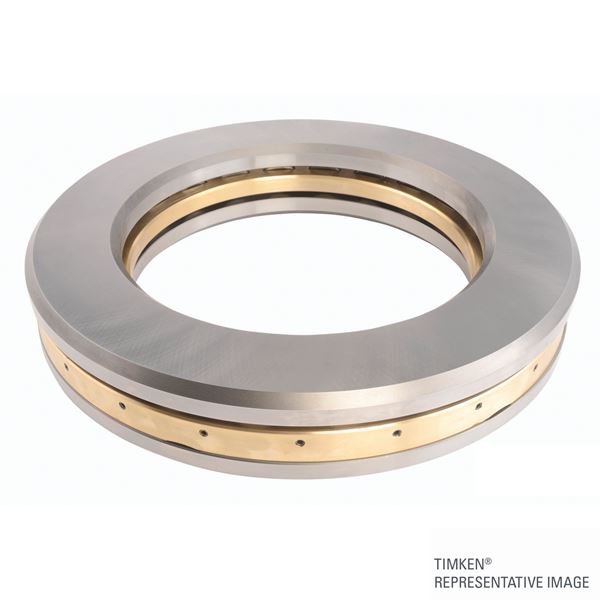

Timken 50TP123
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
127 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
304.8 mm
T - Bearing Width
50.8 mm
T1 - Bearing Width
14.29 mm
d1 - Large Bore I.D.
128.59 mm
D1 - Small Diameter O.D.
303.21 mm
E - Shoulder Diameter - Housing
146 mm
H - Shoulder Diameter - Shaft
288.9 mm
r - Fillet Chamfer
3.2 mm
Basic Load Ratings
Static Load Rating
5600000 N
Dynamic Load Rating
1100000 N
Limiting Speed
950 rpm
