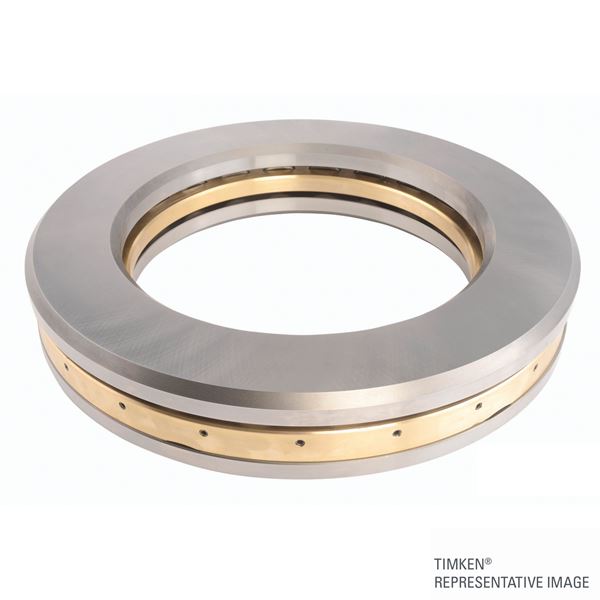

Timken 70TP130
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
177.800 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
279.400 mm
T - Bearing Width
50.8 mm
T1 - Bearing Width
14.29 mm
d1 - Large Bore I.D.
180.18 mm
D1 - Small Diameter O.D.
277.02 mm
E - Shoulder Diameter - Housing
190.5 mm
H - Shoulder Diameter - Shaft
266.7 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
1200000 N
Dynamic Load Rating
800000 N
Limiting Speed
1900 rpm
