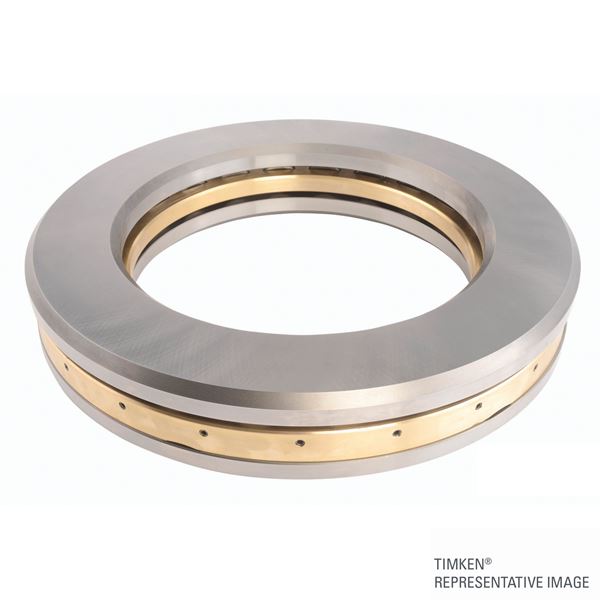

Timken 80TP134
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
203.2 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

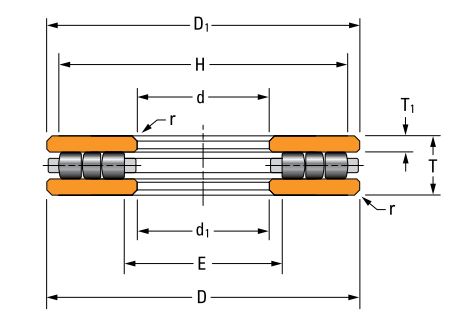

Dimensions
D - Bearing O.D.
304.8 mm
T - Bearing Width
76.2 mm
T1 - Bearing Width
20.64 mm
d1 - Large Bore I.D.
205.58 mm
D1 - Small Diameter O.D.
302.42 mm
E - Shoulder Diameter - Housing
215.9 mm
H - Shoulder Diameter - Shaft
292.1 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
3100000 N
Dynamic Load Rating
1100000 N
Limiting Speed
1260 rpm
