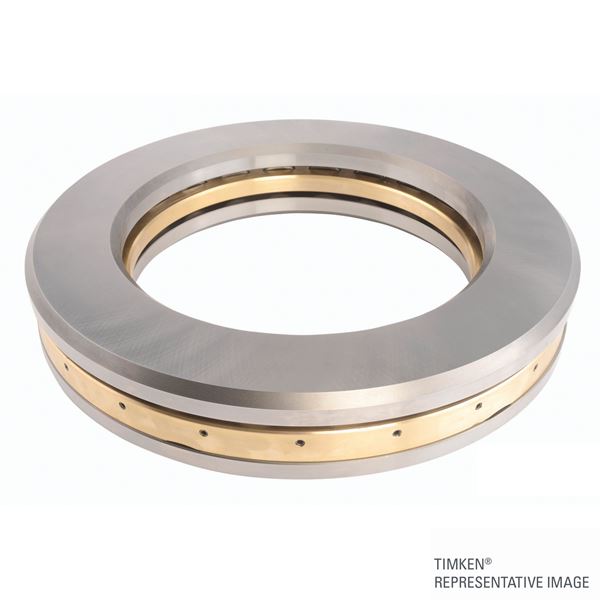

Timken 90TP140
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
228.600 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP

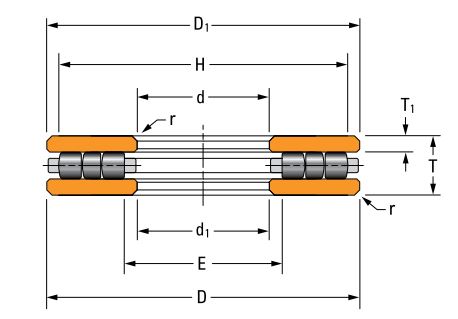

Dimensions
D - Bearing O.D.
406.400 mm
T - Bearing Width
76.2 mm
T1 - Bearing Width
20.64 mm
d1 - Large Bore I.D.
230.98 mm
D1 - Small Diameter O.D.
404.02 mm
E - Shoulder Diameter - Housing
249.2 mm
H - Shoulder Diameter - Shaft
385.8 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
3000000 N
Dynamic Load Rating
1900000 N
Limiting Speed
1260 rpm
