Timken AN 36-W 36
Inch Accessories - Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock

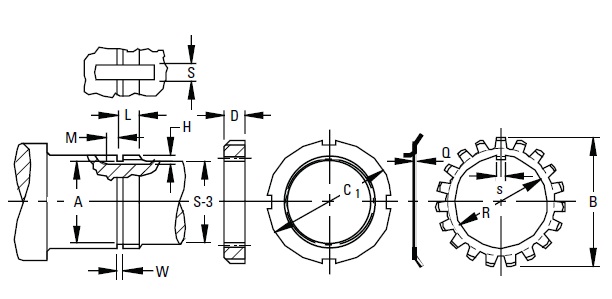

Specifications
Bearing Bore
180 mm
Locknut
AN 36
Lockwasher
W 36
Threads
Major Diameter
179.48 mm
Threads No. per Inch
8
Shaft
Relief Diameter A
175.03 mm
Diameter S-3
174.63 mm
W1
6.76 mm
L2
25.40 mm
H3
6 mm
S4
19.05 mm
M5
9.53 mm
Locknut
C
230.33 mm
D
28.04 mm
Lockwasher
Q
3.71 mm
R
182.14 mm
B
239.73 mm
s
18.16 mm
