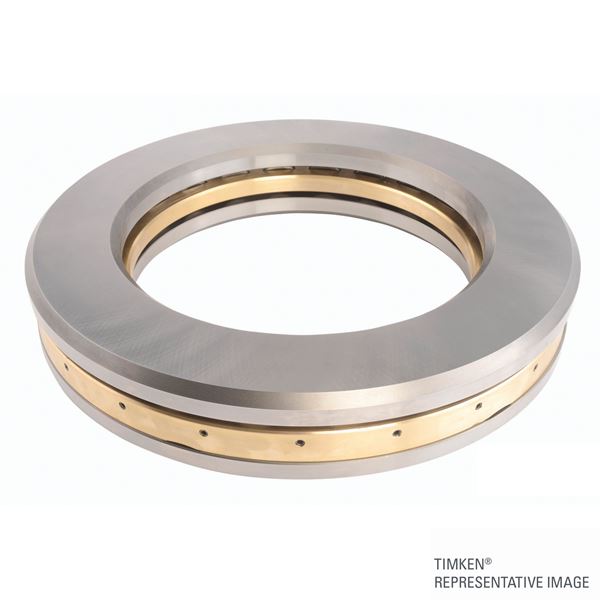

Timken C-8360-A
Thrust Cylindrical Roller Bearing-Type TP
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore Diameter
238.125 mm
Bearing Type
Thrust Cylindrical Roller Bearings - TP
Dimensions
D - Bearing O.D.
307.975 mm
T - Bearing Width
38.1 mm
T1 - Bearing Width
11.11 mm
d1 - Large Bore I.D.
238.51 mm
D1 - Small Diameter O.D.
306.39 mm
E - Shoulder Diameter - Housing
249.2 mm
H - Shoulder Diameter - Shaft
296.9 mm
r - Fillet Chamfer
1.6 mm
Basic Load Ratings
Static Load Rating
3700000 N
Dynamic Load Rating
440000 N
Limiting Speed
1140 rpm
