Timken E-2267-A
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

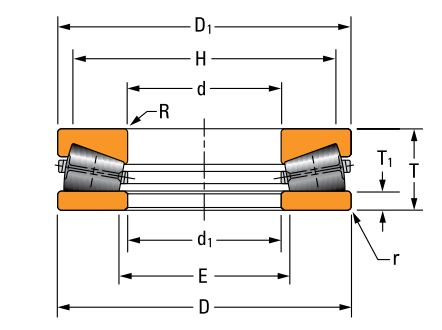

Dimensions
D - Bearing O.D.
1041.400 mm
T - Bearing Width
139.7 mm
T1 - Ring Thickness
30.94 mm
D1 - Small Diameter O.D.
1041.4 mm
d1 - Large Bore I.D.
800.1 mm
R - Fillet Radius Shaft (Max)
4 mm
r - Fillet Radius Housing (Max)
6.0 mm
H - Shoulder Diameter - Shaft
999.4 mm
E - Shoulder Diameter - Housing
849.8 mm
Basic Load Ratings
Static Load Rating
40600000 N
Dynamic Load Rating
2440000 N
