Timken E-2421-A
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

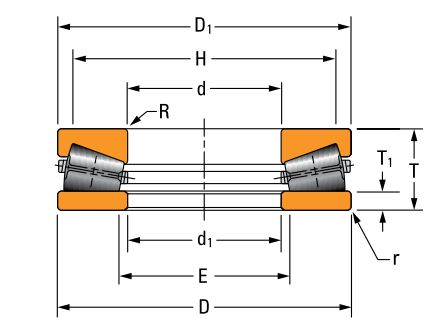

Dimensions
D - Bearing O.D.
1130.300 mm
T - Bearing Width
149.86 mm
T1 - Ring Thickness
33.32 mm
D1 - Small Diameter O.D.
1130 mm
d1 - Large Bore I.D.
850.9 mm
R - Fillet Radius Shaft (Max)
3.2 mm
r - Fillet Radius Housing (Max)
9.5 mm
H - Shoulder Diameter - Shaft
1063.6 mm
E - Shoulder Diameter - Housing
890.6 mm
Basic Load Ratings
Static Load Rating
48800000 N
Dynamic Load Rating
2890000 N
