Timken J-940-A
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

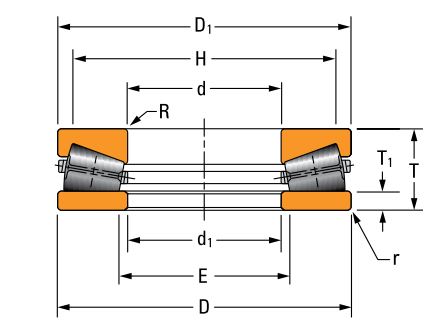

Dimensions
D - Bearing O.D.
812.800 mm
T - Bearing Width
101.6 mm
T1 - Ring Thickness
27.79 mm
D1 - Small Diameter O.D.
812.8 mm
d1 - Large Bore I.D.
609.6 mm
R - Fillet Radius Shaft (Max)
6.4 mm
r - Fillet Radius Housing (Max)
6.4 mm
H - Shoulder Diameter - Shaft
778.5 mm
E - Shoulder Diameter - Housing
639.3 mm
Basic Load Ratings
Static Load Rating
26200000 N
Dynamic Load Rating
1420000 N
