Timken E50KRR
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Industrial
Shaft Size d
50 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
E..KRR
Seal Type
Shroud Seal

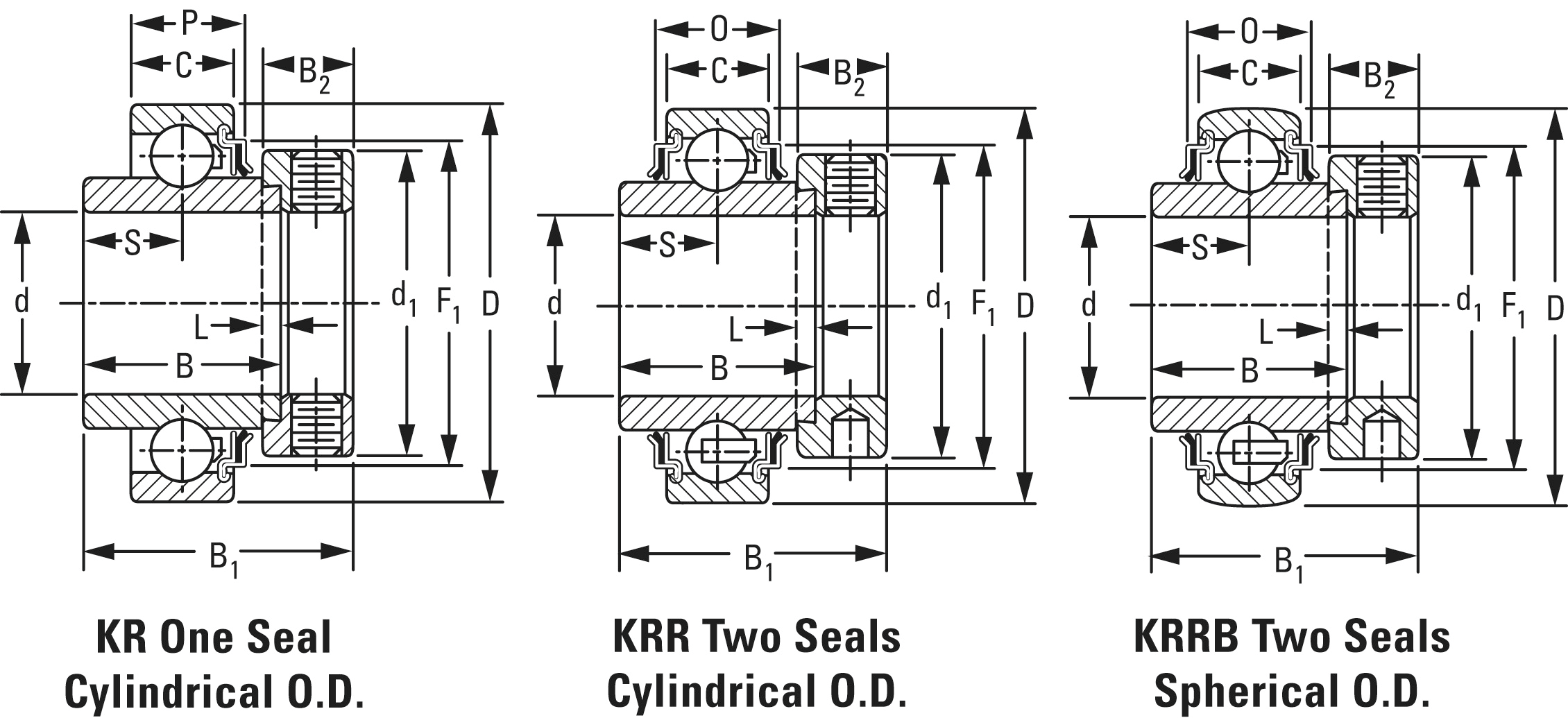

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
49.21 mm
Outside Ring Width C
20 mm
Radius r
0.6 mm
Center of Bearing from End S
24.6 mm
Set Screw Size
M10x1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
69.9 mm
Dimension B1
62.7 mm
Dimension B2
18.3 mm
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
